Mesh Admin TUI

The Mesh Admin TUI (monarch-tui) is an interactive terminal client for inspecting live Monarch meshes. It connects to the mesh admin HTTP API and renders the full topology — hosts, processes, and actors — as a navigable tree with a contextual detail pane.

The TUI is included in the torchmonarch PyPI package. After pip install torchmonarch, the monarch-tui command is available on PATH.

Quick Start

Start any Monarch application that spawns a MeshAdminAgent. The Dining Philosophers example is the easiest way to try it — five philosopher actors share chopsticks around a table, mediated by a waiter actor that prevents deadlock.

Terminal 1 — start the example:

python python/examples/dining_philosophers.py

The example prints the admin server address on startup:

Mesh admin server listening on http://127.0.0.1:1729

Terminal 2 — attach the TUI:

monarch-tui --addr 127.0.0.1:1729

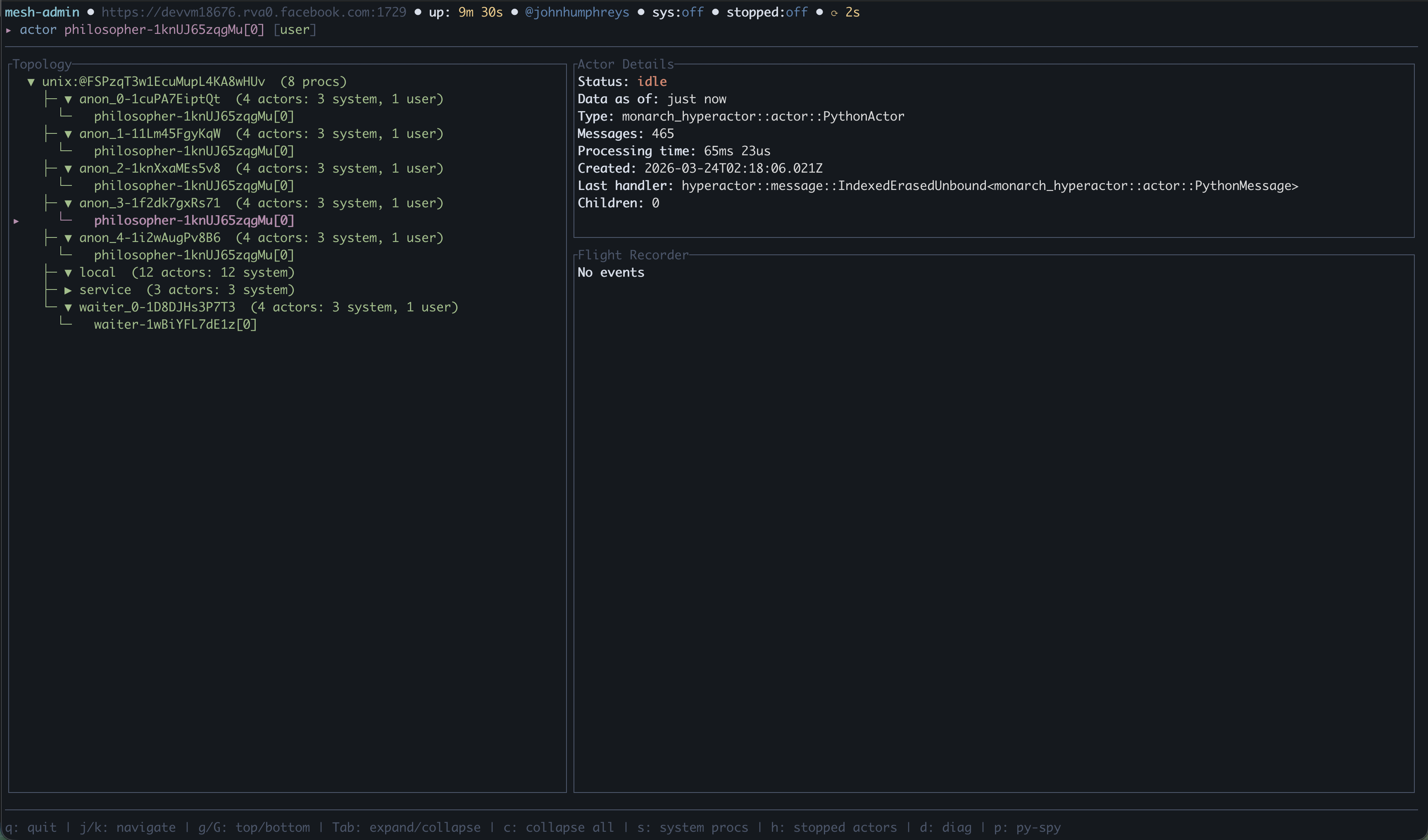

Topology Tree

The main view is a split-pane layout: an expandable topology tree on the left showing hosts, processes, and actors, and a detail pane on the right with contextual information for the selected node.

Navigate with j/k, expand and collapse nodes with Tab. Selecting an actor shows its status, message count, processing time, last handler, and flight recorder events.

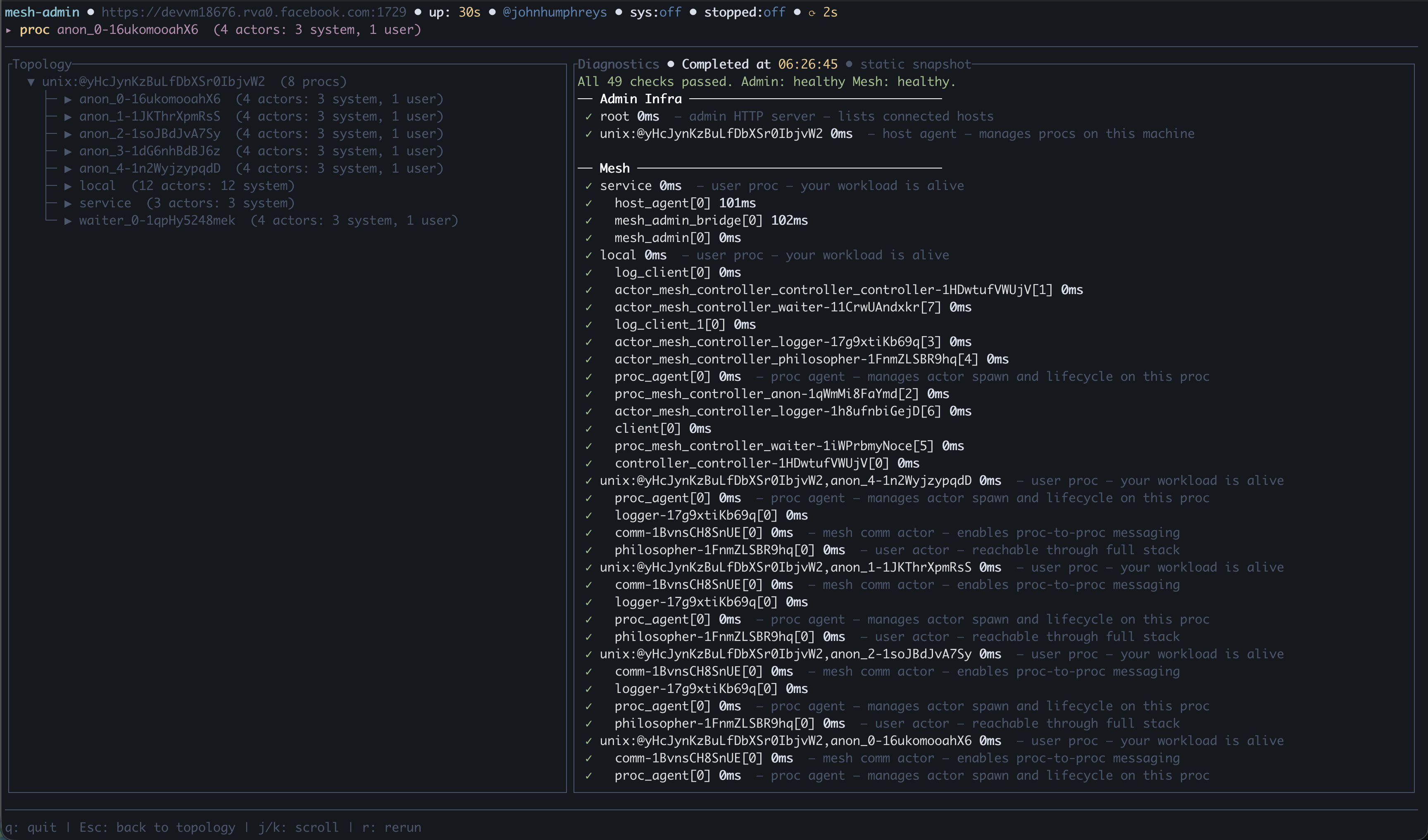

Diagnostics

Press d to run a full health check across the mesh. The diagnostics overlay probes every node in the topology and reports pass/slow/fail for each, separated into Admin Infrastructure (admin server, host agents, service procs) and Mesh (user procs and actors). Each probe shows its latency in milliseconds.

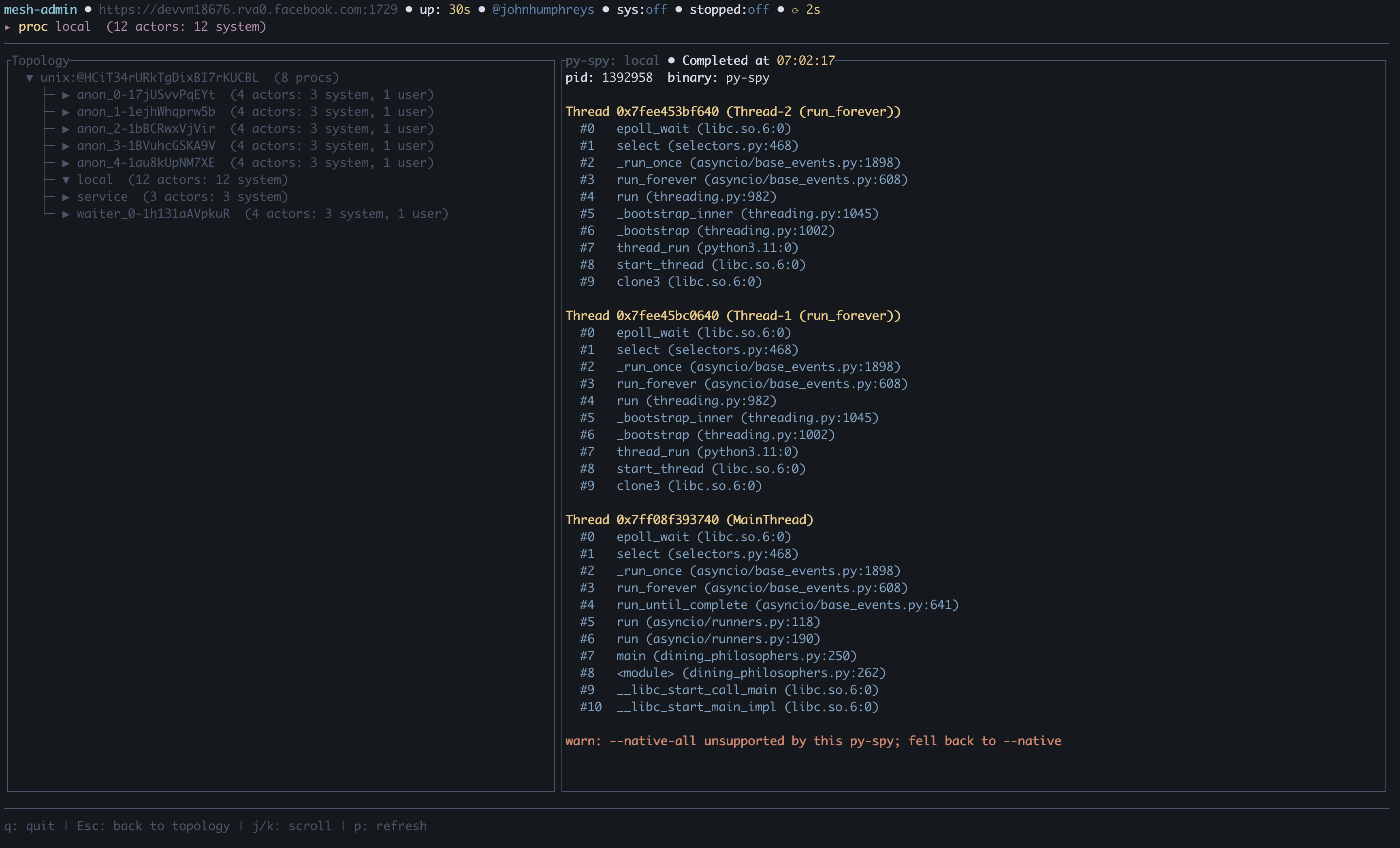

Py-spy Stack Traces

Press p on any proc or actor to capture a live Python stack trace via py-spy. The overlay shows per-thread stacks with frame-level detail, GIL ownership, and thread names. Each press fetches a fresh trace — useful for diagnosing hangs in C extensions and CUDA calls.

py-spy is included as a default dependency of torchmonarch.

Keybindings

Key	Action
j / ↓	Move cursor down
k / ↑	Move cursor up
g / Home	Jump to top
G / End	Jump to bottom
PgDn / Ctrl+D	Page down
PgUp / Ctrl+U	Page up
Tab	Expand/collapse selected node
c	Collapse all nodes
s	Toggle system actor visibility
h	Toggle stopped actor visibility (failed actors always remain visible)
d	Run diagnostics overlay
p	Py-spy stack trace for selected proc or actor
Ctrl+L	Scroll selected item to top of viewport
Esc	Dismiss overlay
q / Ctrl+C	Quit

CLI Options

monarch-tui [OPTIONS] --addr <ADDR>

Flag	Description	Default
--addr, -a	Admin server address (host:port or https://host:port)	required
--refresh-ms	Auto-refresh interval in milliseconds	2000
--theme	Color theme: nord (dark) or doom-nord-light (light)	nord
--lang	Display language: en or zh (Simplified Chinese)	en
--diagnose	Run diagnostics non-interactively, print JSON, and exit	false
--tls-ca	Path to PEM CA certificate for TLS	auto-detected
--tls-cert	Path to PEM client certificate for mutual TLS	auto-detected
--tls-key	Path to PEM client key for mutual TLS	—

Non-interactive diagnostics

For scripted health checks, use --diagnose to get a JSON report on stdout:

monarch-tui --addr 127.0.0.1:1729 --diagnose
# Exits 0 if healthy, 1 if any check failed.

Source Code

Component	Location
TUI binary	hyperactor_mesh/bin/admin_tui/
Admin HTTP API	hyperactor_mesh/src/mesh_admin.rs
Dining philosophers example	python/examples/dining_philosophers.py
