torchx.components

This module contains a collection of builtin TorchX components. The directory structure is organized by component category. Components are simply templetized app specs. Think of them as a factory methods for different types of job definitions. The functions that return specs.AppDef in this module are what we refer to as components.

You can browse the library of components in the torchx.components module or on our docs page.

Components can be used out of the box by either torchx cli or torchx sdk.

# using via sdk
from torchx.runner import get_runner
get_runner().run_component("distributed.ddp", app_args=[], scheduler="local", ...)

# using via torchx-cli

>> torchx run --scheduler local distributed.ddp --param1 --param2

Components development

The addition of a new component is pretty straightforward and consists

of the following steps:

• Determine component location

• Create component as function

• Unit tests

Determine component location. Each component belongs to one or another category, and should be located accordingly. E.g. the definition of distributed components should be located in distributed.py file.

Create component as function. Each component represents a function that accepts

arbitrary arguments and returns specs.AppDef.

The function should have the following properties:

• All arguments of the function must be annotated

• Current supported types:

  • Primitives: int, float, str

  • Optional primitives: Optional[int], Optional[float], Optional[str]

  • Dict: Dict[Primitive_key, Primitive_value]

  • List: List[Primitive_value]

  • Optional[List], Optional[Dict]

• The function should have well defined description in

  https://sphinxcontrib-napoleon.readthedocs.io/en/latest/example_google.html format

Unit tests. Write unit tests that use torchx.specs.file_linter to validate the component’s structure, similar to torchx.components.tests.distributed_test.py.

Note

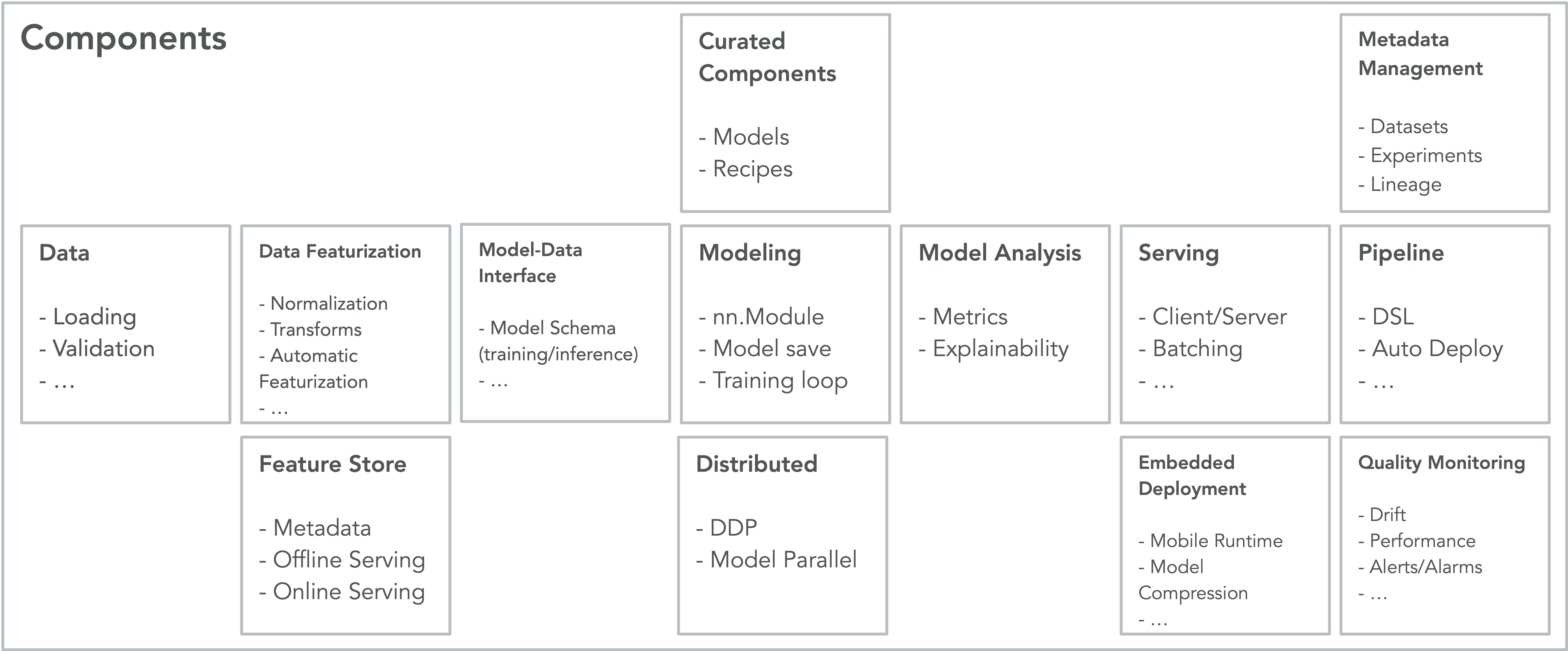

Diagram above for illustration purposes only. Not all boxes are currently available out-of-the-box.
